Introduction
Dear maker friends, welcome to the learning world of the LAFVIN Quadruped Spider Robot!
Please read this documentation carefully. If you encounter any problems during use, please contact our after-sales support team, and we will assist you as soon as possible.

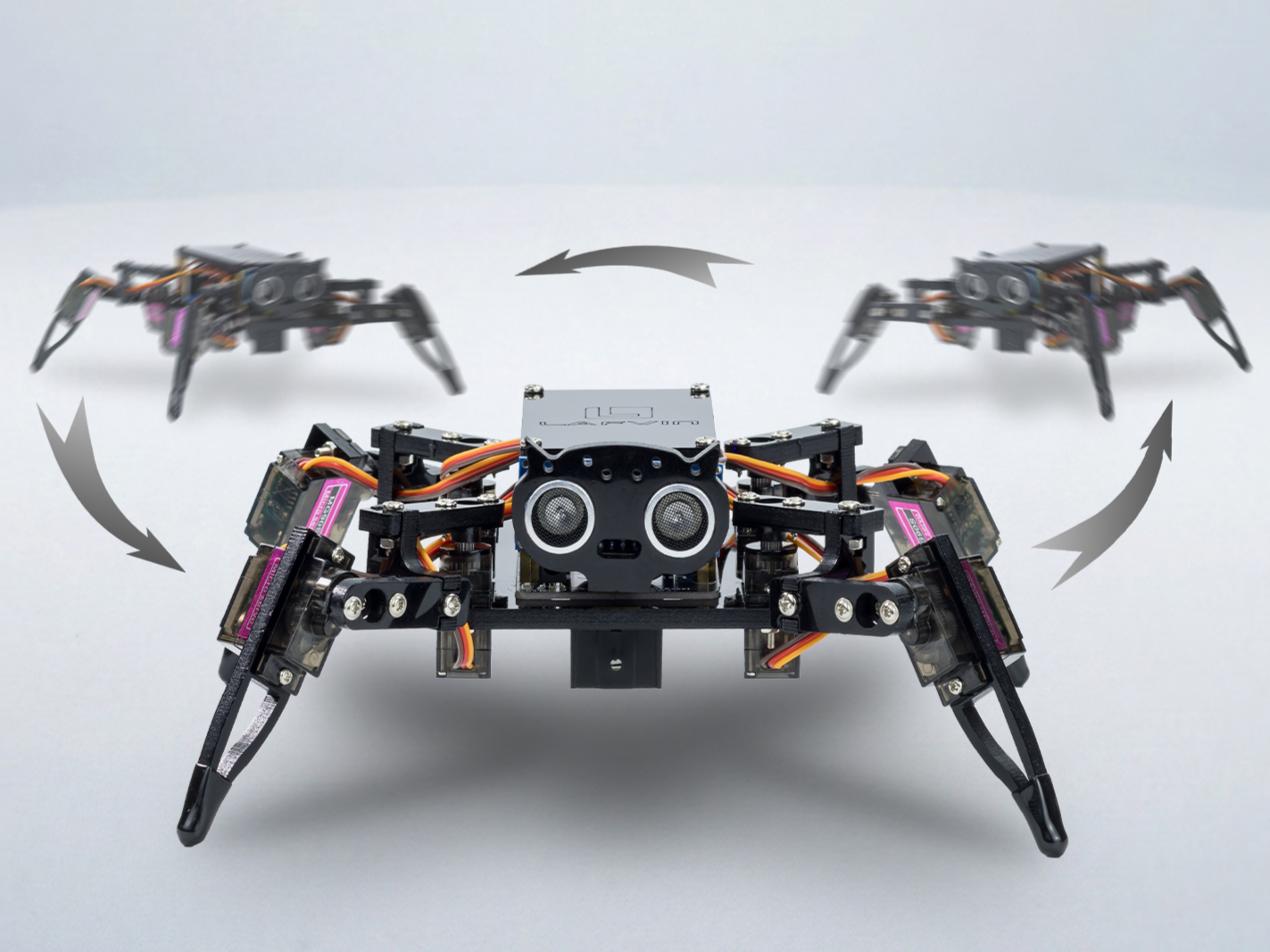

LAFVIN Quadruped Spider Robot
Function Introduction
This quadruped spider robot, based on the ESP8266, features a multi-degree-of-freedom design and offers a wide range of flexible movements. It integrates Wi-Fi, infrared remote control, and ultrasonic obstacle avoidance, and is equipped with eight MG90 servos, supporting six postures and nine preset actions. A comprehensive curriculum is included, and open-source code supports secondary development, making it suitable for teaching, demonstrations, research, and maker projects.
APP Control:
The robot can be controlled via a mobile application, allowing you to easily manage its movements and functions through your smartphone.
Infrared Remote Control:
The robot can also be operated using an infrared remote controller, providing an alternative method for controlling its actions.
Ultrasonic Obstacle Avoidance:
The robot is equipped with an ultrasonic distance sensor that enables it to detect and avoid obstacles in its path, enhancing its navigation capabilities.

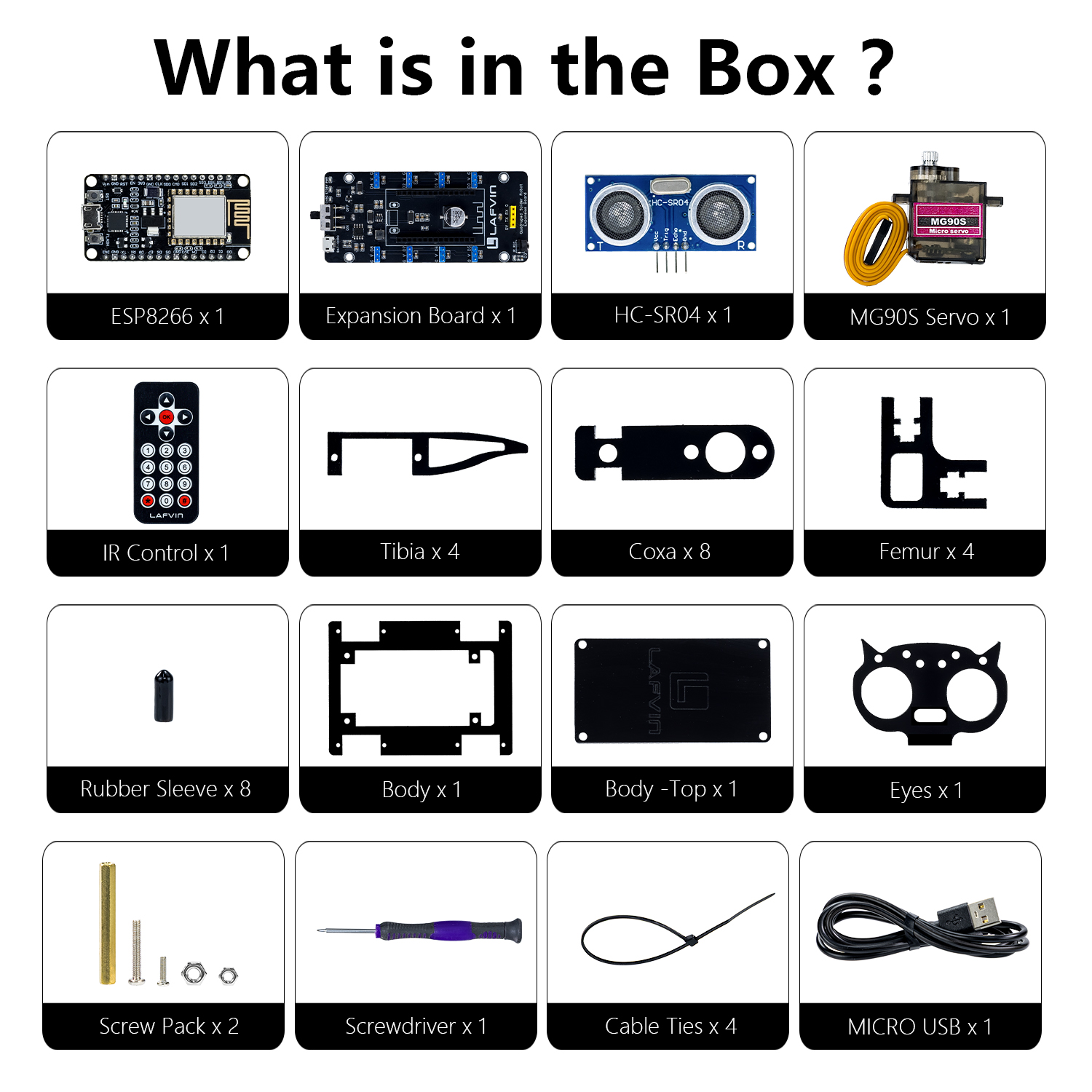

Bill of Materials
Serial Number |
Name |
Quantity |
|---|---|---|
1 |
ESP8266 Development Board |
x1 |
2 |
Quadruped Spider Extension Board |
x1 |
3 |
Ultrasonic Distance Sensor |
x1 |
4 |
MG90 Servo |
x8 |
5 |
Infrared Remote Controller |
x1 |
6 |
Custom Acrylic Plate |
x2 |
7 |
Micro USB Data Cable |
x1 |
8 |
Screw Package |
x1 |
9 |
Phillips Screwdriver |
x1 |
10 |
Cable Ties |
x4 |
11 |
Anti-slip Rubber Sleeves |
x8 |
Upon receiving the kit, please first check all components against the above bill of materials. If you find any missing or damaged items, please contact our technical support team immediately.
Resource Download
All the necessary code and library files for this course are provided. You can obtain all the resources through the following link.
Next, we will delve into the core content of the course and help you gradually understand the relevant concepts and master the operation procedures.
